Vario 400 SeriesFreezerRF413301
Freezer

400 series Vario built-in freezer 212.5 x 45.1 cm flat hinge
RF413301

1 / 7

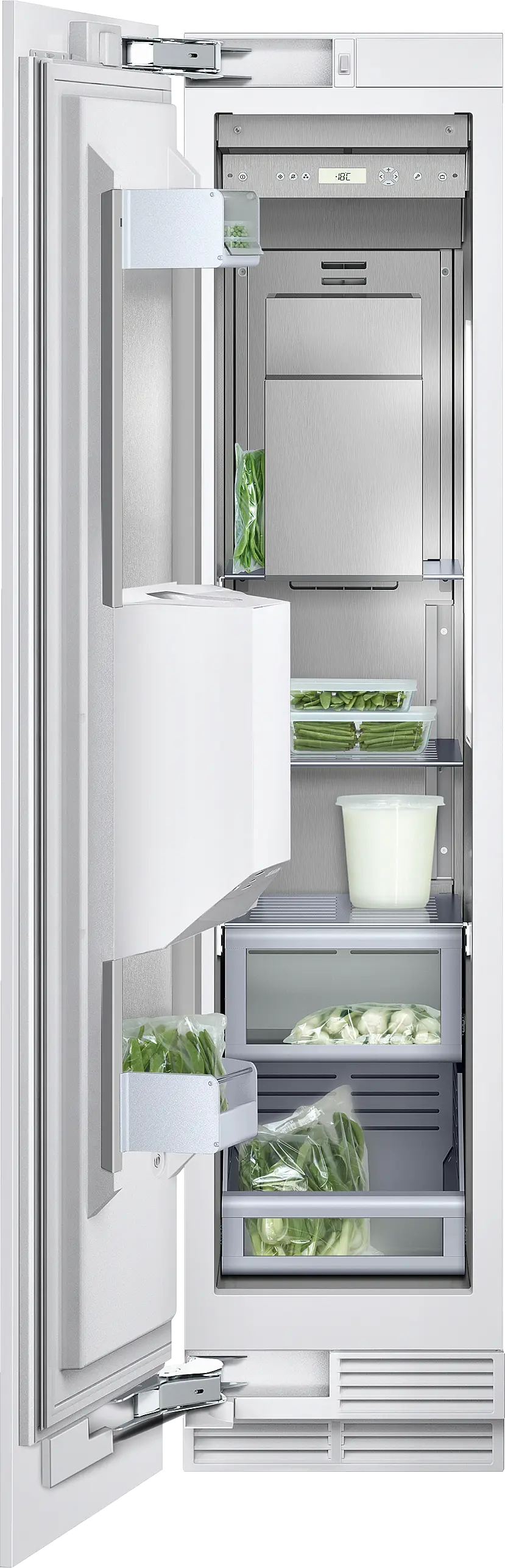

Photo Nr. 1 of the product RF413301

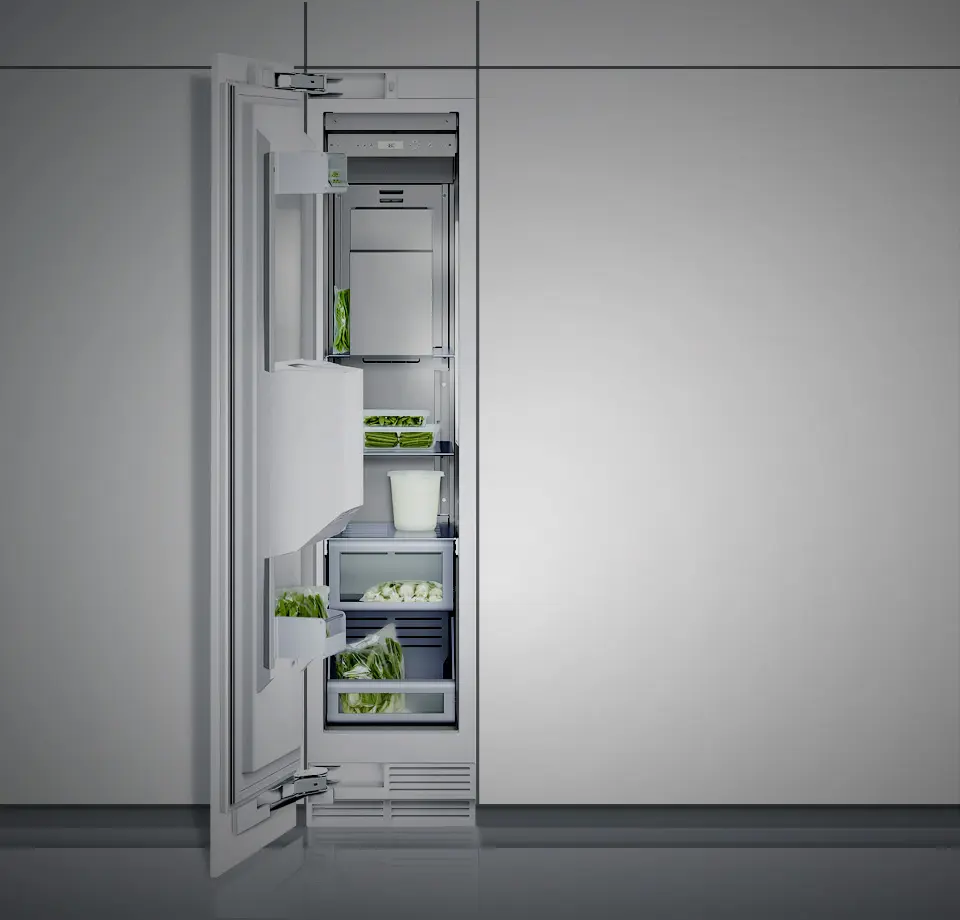

Photo Nr. 2 of the product RF413301
Photo Nr. 3 of the product RF413301
Photo Nr. 4 of the product RF413301
Photo Nr. 5 of the product RF413301
Photo Nr. 6 of the product RF413301
Photo Nr. 7 of the product RF413301
Photo thumb Nr. 1 of the product RF413301
Photo thumb Nr. 2 of the product RF413301
Photo thumb Nr. 3 of the product RF413301
Photo thumb Nr. 4 of the product RF413301
Photo thumb Nr. 5 of the product RF413301
Photo thumb Nr. 6 of the product RF413301
Photo thumb Nr. 7 of the product RF413301
Photo thumb Nr. 1 of the product RF413301
Photo thumb Nr. 2 of the product RF413301
Photo thumb Nr. 3 of the product RF413301
Photo thumb Nr. 4 of the product RF413301
Photo thumb Nr. 5 of the product RF413301
Photo thumb Nr. 6 of the product RF413301
Photo thumb Nr. 7 of the product RF413301

400 series Vario built-in freezer 212.5 x 45.1 cm flat hinge
RF413301

Find a local Dealer

Technical Overview

Door handle type
no handle
Door hinge
left and right

Specifications

Stainless steel interior
Generous lighting concept
Integrated ice maker with fixed inlet water connection
Illuminated dispenser for ice cubes, crushed ice and chilled water
Solid aluminium door racks
Net volume 198 litres
Energy efficiency class A+
Electronic temperature control with digital display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Rest mode certified by Star-K.
Open-door and malfunction alarm.
No-frost technology with fast freezing.
Temperature adjustable from -16 °C to -24 °C.
4-star freezer compartment.
Freezing capacity 9 kg/24 h.
Storage time after a malfunction 9 h.
4 solid metal shelves, 2 of which are manually adjustable.
2 fully extendable drawers with transparent front, 1 of which large, 1 regular.
Bright interior lighting with light pillars.
1 extra deep door rack.
1 door rack with transparent front flap.
Illuminated.
Integrated, with fixed inlet water connection.
Can be switched off.
Ice cube production approx. 1.9 kg/24 h.
Ice cubes and crushed ice.
Removable ice storage container with approx. 3 kg capacity.
Ice water supply approx. 1.5 litres.
Energy efficiency class A+ at a range of energy efficiency classes from A+++ to D.
Energy consumption 299 kWh/year.
Noise level 41 dB (re 1 pW).
Flat hinge.
Door opening angle of 115°, fixable at 90°.
Max. door panel weight 63 kg.
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
Total connected load 0.550 KW.
Connecting cable 3.0 m, detachable.
Water inlet.
Supply hose 3.0 m with 3/4 " connection.
Water pressure 2 to 8 bar.

Manual and Documents

Technical Overview
Specifications
Manual and Documents

400 series Vario built-in freezer 212.5 x 45.1 cm flat hinge
RF413301

Find a local Dealer

Vario built-in freezer 212.5 x 45.1 cm flat hinge
