200 series Built-in steamer 60 x 45 cm Door hinge: Right, Gaggenau Anthracite
BSP220101

Replacement for
BSP220100
Find a local Dealer

Technical Overview

Dimensions (HxWxD)
455x590x540 mm
Connection
with plug
Home Connect
Yes

Highlights

Special Features

Water tank for fresh and waste water

Specifications

Flush installation
Water tank
Steaming without pressure with 100% humidity from 30 °C to 100 °C
Sous-vide cooking with accurate temperature regulation
TFT touch display
Panel-free appliance with surface control module
Net volume 59 litres
Rotary knob and TFT touch display operation.
Clear text display.
Information key with use indicators.
Side-opening door opens up to 110° angle.
Removable 1.7 litre water tank.
Water level warning.
Actual temperature display.
Automatic boiling point detection.
Hygienic stainless steel cooking interior.
3 tray levels.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Cleaning aid.
Door hinge not reversible.
No other electrical appliances should be installed above the BS.

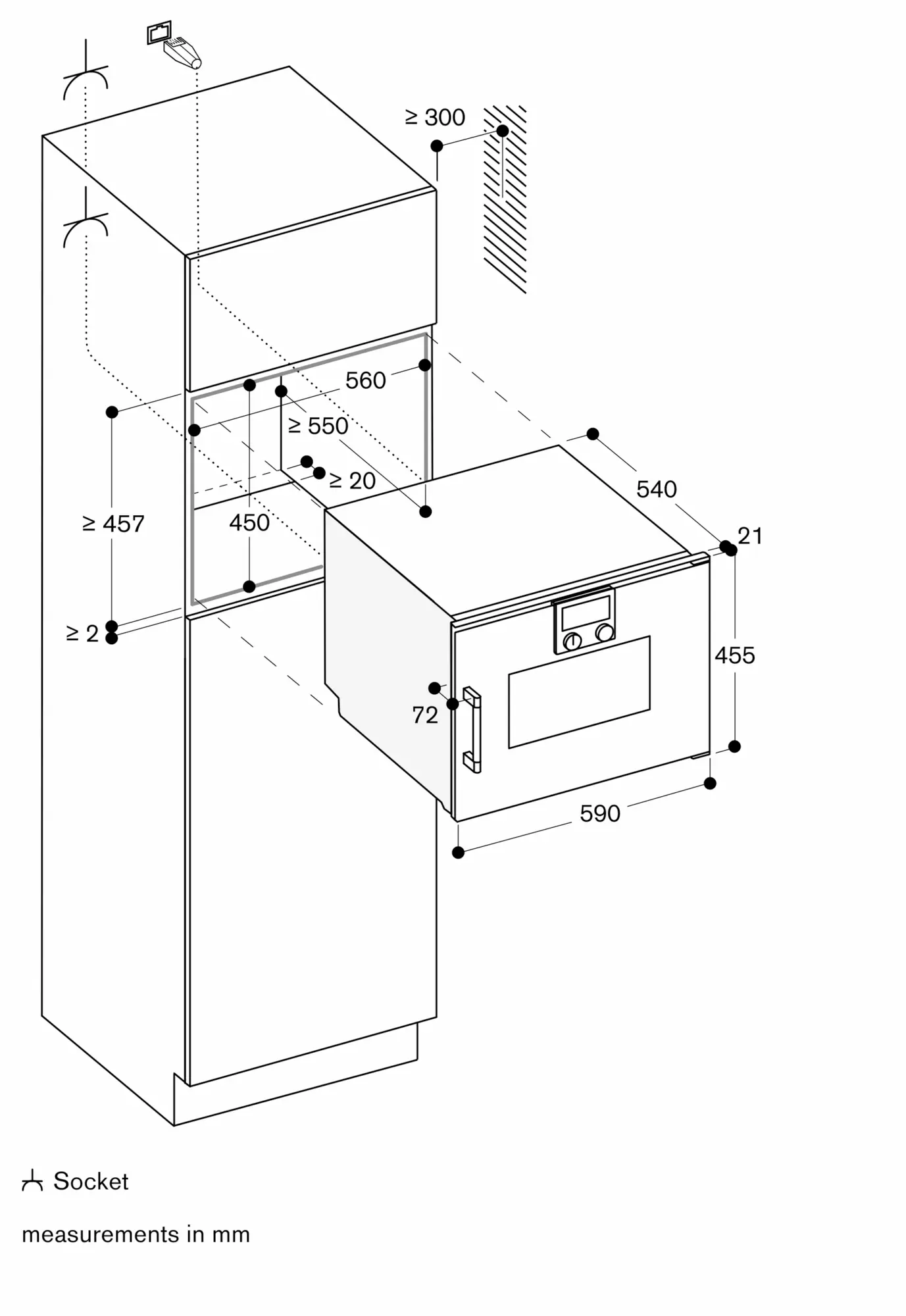

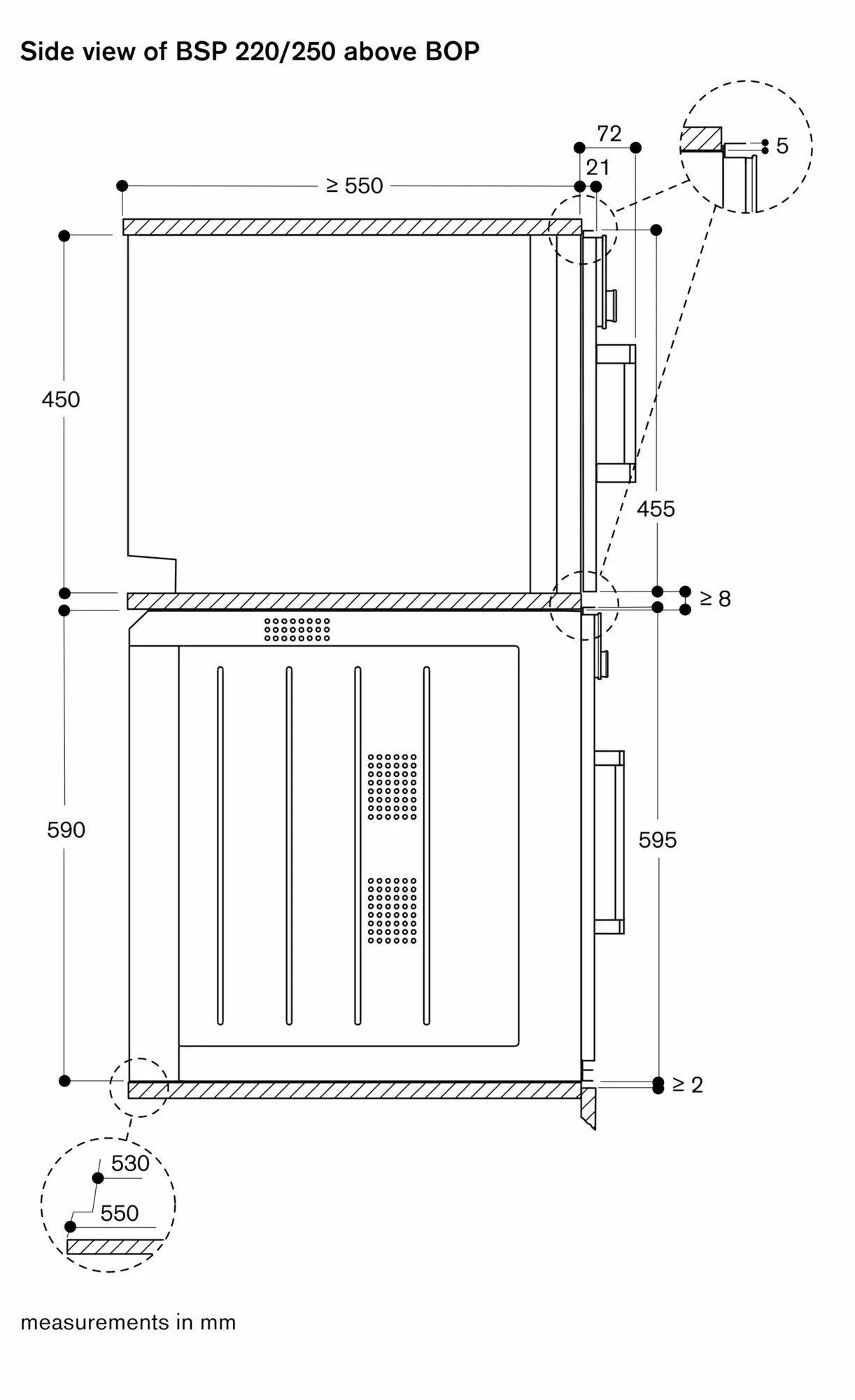

The door panel surface of the appliance extends 21 mm from the furniture cavity.
The outer edge of the door handle extends 72 mm from the furniture cavity.
Necessary lateral gap between appliance door and furniture panel of min. 5 mm.
Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 110° door opening angle.
The mains socket needs to be planned outside the built-in niche.
Total connected load 2.8 KW.
Connecting cable 1.8 m with plug.
Power consumption standby/display off 0.5 W.
Power consumption standby/network 1.8 W.
Time auto-standby/network 20 min.
Please check the user manual for how to switch off the WiFi module.
