200 Seriesfully-integrated DiswashersDF270101F
fully-integrated Diswashers

200 series fully-integrated dishwasher 60 cm Variable hinge for special installation situations
DF270101F

Replacement for
DF270100F
1 / 10
Photo Nr. 1 of the product DF270101F
Photo Nr. 2 of the product DF270101F
Photo Nr. 3 of the product DF270101F
Photo Nr. 4 of the product DF270101F
Photo Nr. 5 of the product DF270101F
Photo Nr. 6 of the product DF270101F
Photo Nr. 7 of the product DF270101F
Photo Nr. 8 of the product DF270101F
Photo Nr. 9 of the product DF270101F
Photo Nr. 10 of the product DF270101F
Photo thumb Nr. 1 of the product DF270101F
Photo thumb Nr. 2 of the product DF270101F
Photo thumb Nr. 3 of the product DF270101F
Photo thumb Nr. 4 of the product DF270101F
Photo thumb Nr. 5 of the product DF270101F
Photo thumb Nr. 6 of the product DF270101F
Photo thumb Nr. 7 of the product DF270101F
Photo thumb Nr. 8 of the product DF270101F
Photo thumb Nr. 9 of the product DF270101F
Photo thumb Nr. 10 of the product DF270101F
Photo thumb Nr. 1 of the product DF270101F
Photo thumb Nr. 2 of the product DF270101F
Photo thumb Nr. 3 of the product DF270101F
Photo thumb Nr. 4 of the product DF270101F
Photo thumb Nr. 5 of the product DF270101F
Photo thumb Nr. 6 of the product DF270101F
Photo thumb Nr. 7 of the product DF270101F
Photo thumb Nr. 8 of the product DF270101F
Photo thumb Nr. 9 of the product DF270101F
Photo thumb Nr. 10 of the product DF270101F

200 series fully-integrated dishwasher 60 cm Variable hinge for special installation situations
DF270101F

Replacement for
DF270100F
Find a local Dealer

Technical Overview

Number of programmes
6
Drying system
Zeolith, Heat exchanger + drying assist
Additional operational options
Remote control, Intensive Zone, half load, Machine Care
Home Connect
Yes

Specifications

Flexible basket system with smooth running rails on all levels
Bright interior lighting
Push-to-open function for perfect integration into handleless furniture fronts
Very quiet: 43 dB

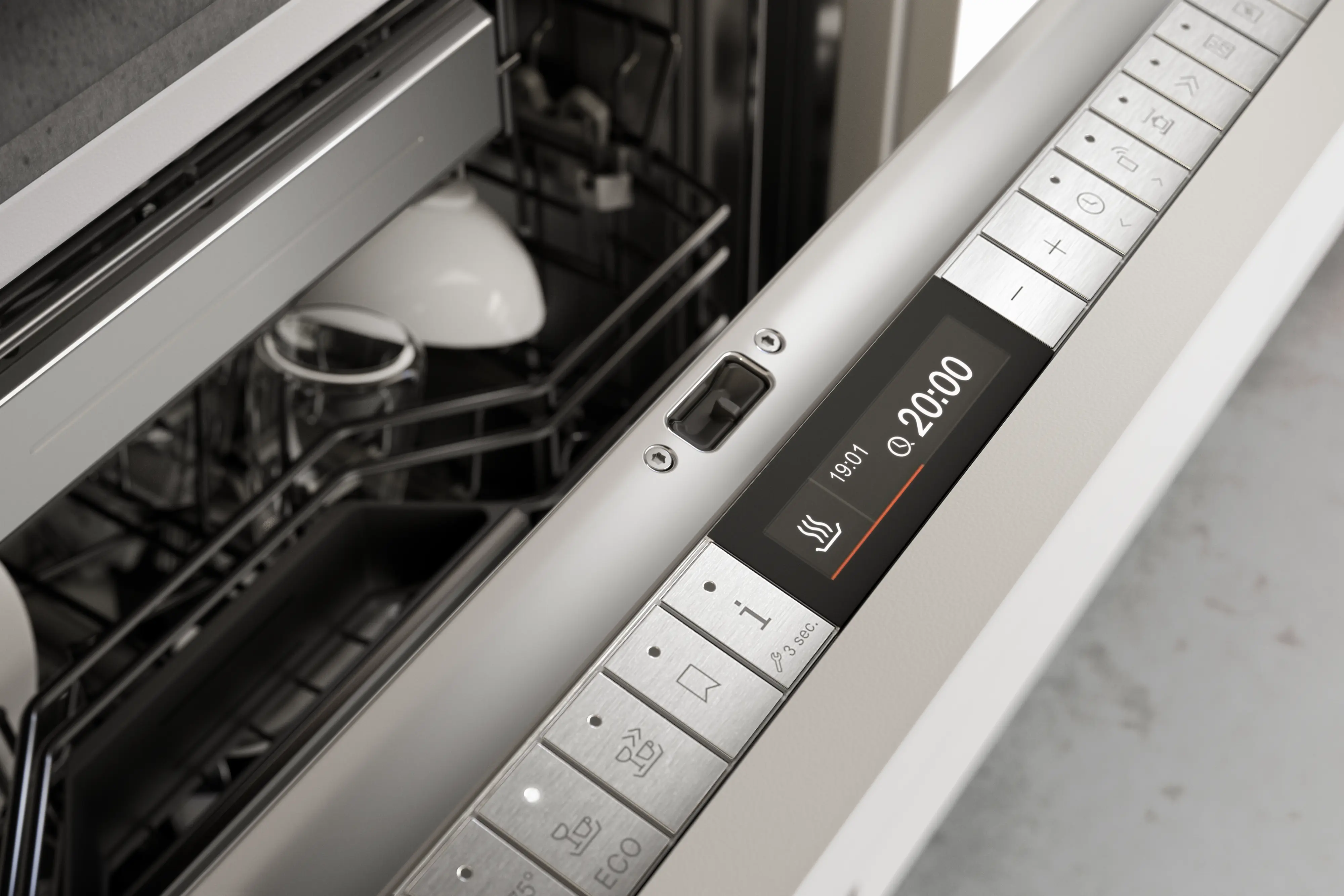

TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Information key with use indicators.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Bright interior lighting.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
Regeneration electronics
Heat exchanger.
speedMatic hydraulic system
Triple filter system.
Soft lock.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Flexible basket system with smooth running rails on all levels.
Cutlery basket.
Maximum dish sizes (upper/lower basket)
27/25, 24.5/27.5 or 22/31 cm respectively.
12 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
From 9.5 l water.
Noise level 43 dB (re 1 pW).
Height-adjustable feet.

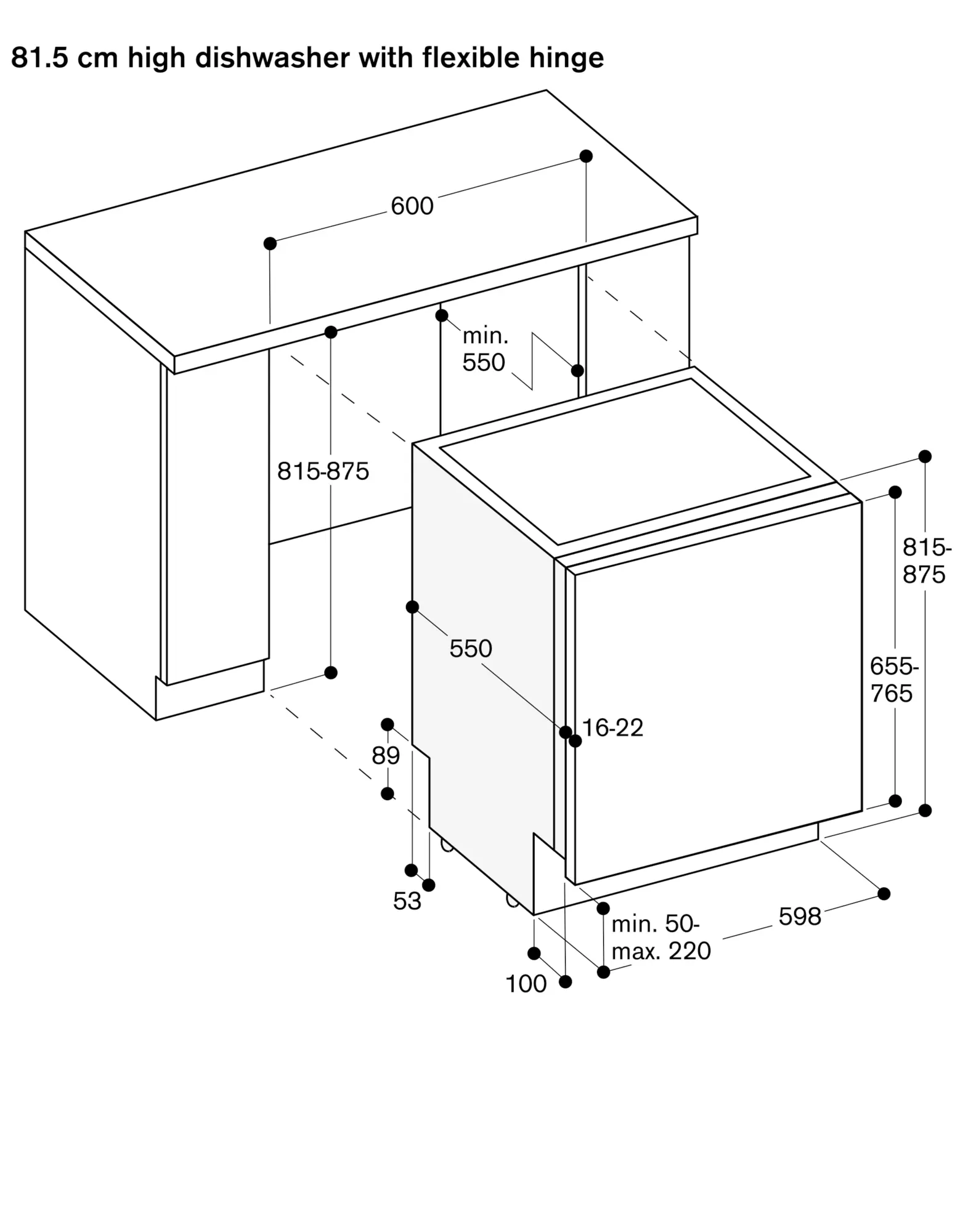

Appliance plinth recess 100 mm (see drawing).
Rear feet adjustable at front.
Door weight up to 11 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also with furniture handle possible. The push-to-open function remains active.
Connecting cable pluggable.

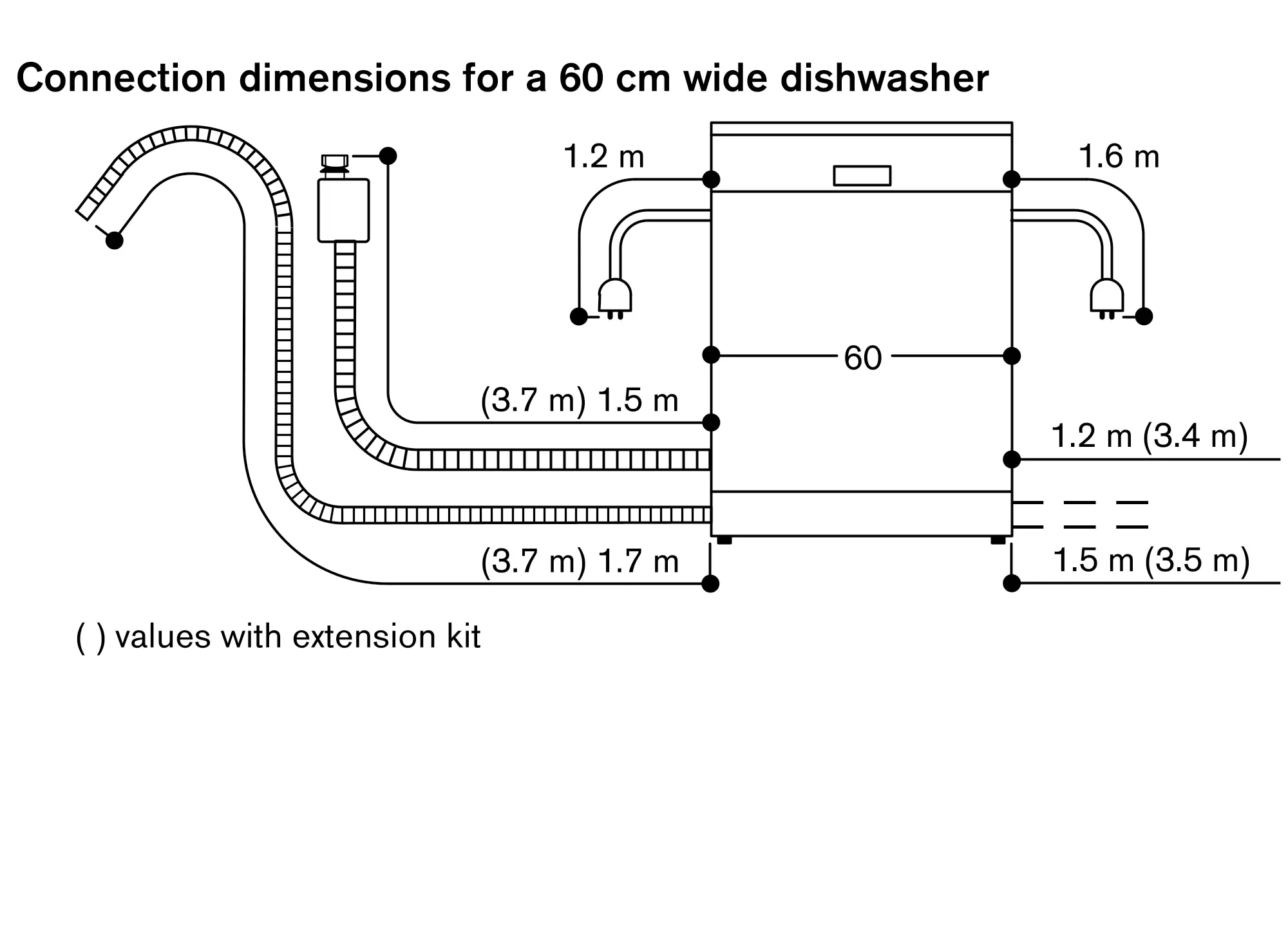

Water connection with 3/4 " screw joint.
Connection to hot or cold water possible.
Power consumption standby/network 2.0 W.
Time auto-standby/network 2 min.
Left-on-mode duration 0 min.
Please check the user manual for how to switch off the WiFi module.
