200 series Vario gas cooktop 28 cm Liquidgas G30,31 28-30/37 mbarVG231120IN
Find a local Dealer
Vario gas cooktop 28 cm Liquidgas G30,31 28-30/37 mbar
Technical Overview
Dimensions (HxWxD)
148 x 288 x 512 mm
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
1
Frame type
Standard design
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
Multi-ring burner of solid, heat-resistant brass as used in professional kitchen
Total output up to 5.8 KW
One-handed operation.
Electric ignition.
To close the cover, the cast iron pan support can be easily reversed.
Cast iron pan support.
Brass burner rings.
Thermoelectric safety pilot.
Residual heat indication.
Operation indicator.
Appliance can be snapped into the worktop from above.

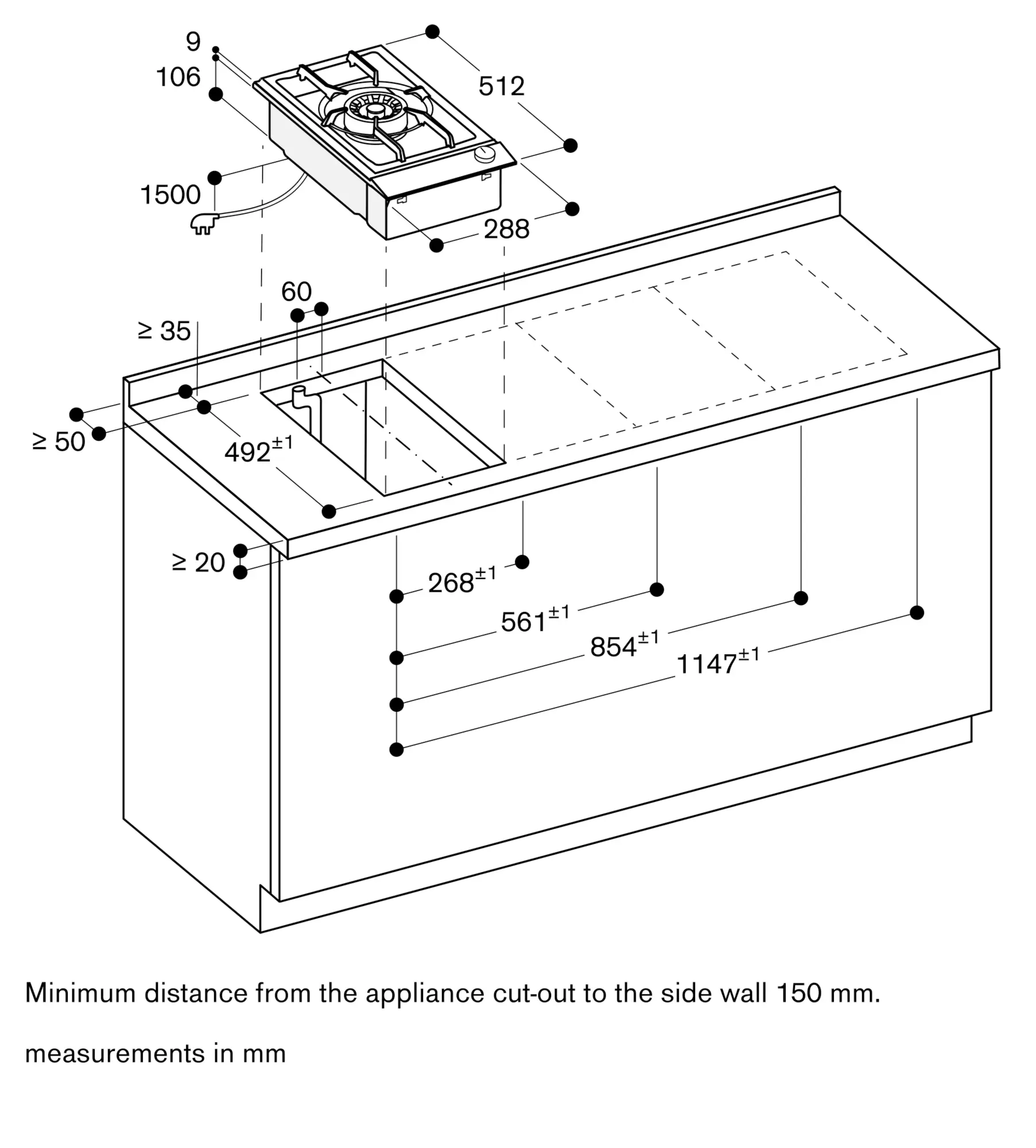

A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
With a total connected load of more than 11 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.
Appliance weight: approx. 10.
Total connected load gas 5.8 KW.
Total connected load electric 10.0 W.
Connecting cable 1.5 m with plug.
